At the Company’s Nosib Block (“Nosib”) prospect 20km to the southwest of Abenab, a zone of shallow, high-grade, vanadium-copper-lead-silver mineralisation has been identified.
The Company recently completed a ten diamond drillhole program (for 942m in March 2022) that followed a very successful RC drilling program completed in 2021.
The diamond drilling program included six holes that tested the shallow, high-grade, copper-lead-vanadium zone, both within the defined shoot for definition and metallurgical purposes, as well as along strike where the zone is open to the east.
A further four diamond drillholes have tested extensions of the thick, stratabound, copper-silver zone at depth that has produced significant true-width intersections of copper-silver mineralisation up to 45m thick, across the entire thickness of the host arenite unit.

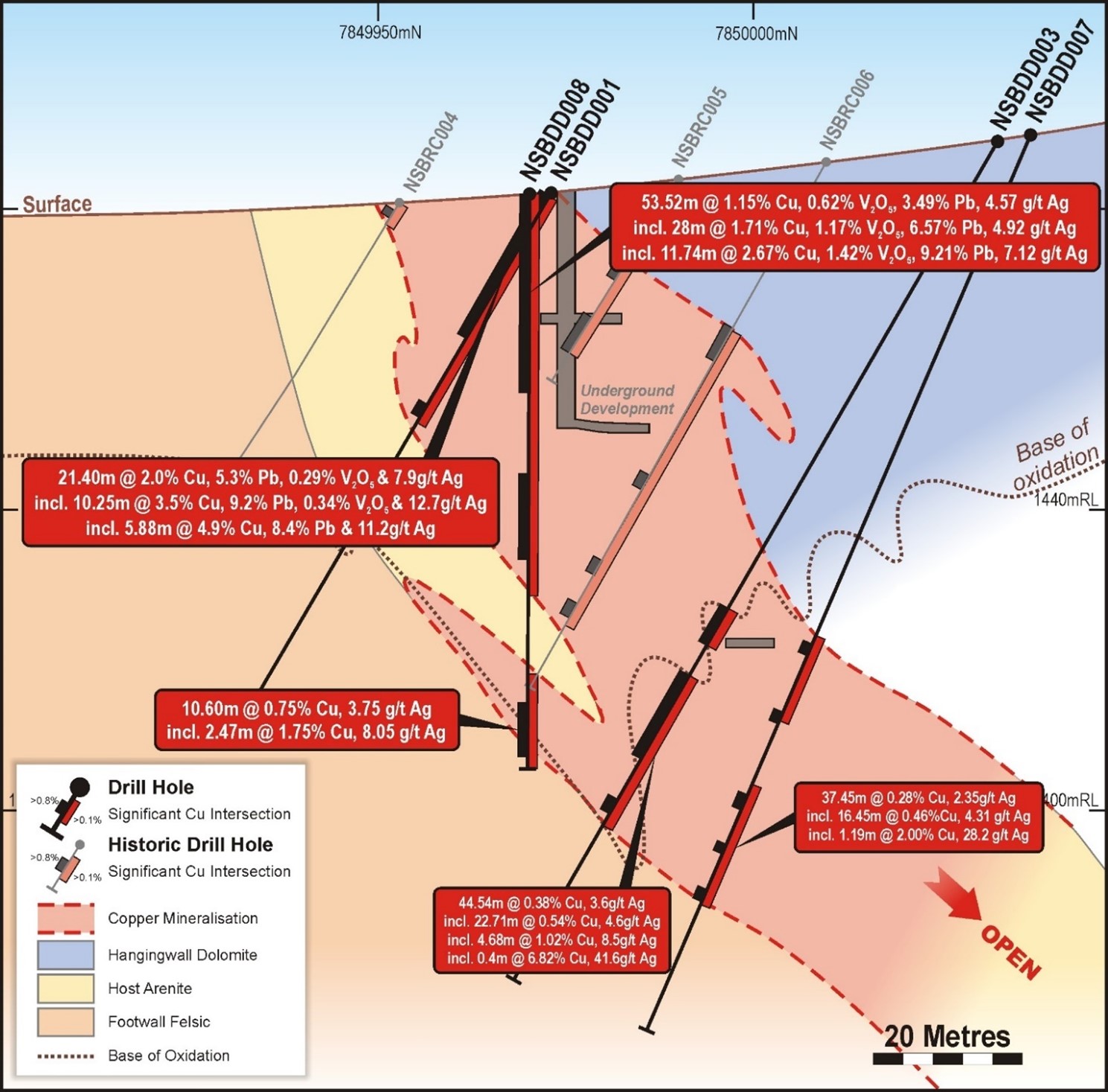

The diamond drilling has defined and extended the shallow, high-grade, copper- vanadium – lead zone over a strike-length of over 100m and to a depth of >50m below surface, and produced the following, thick and high-grade intersections:
Diamond drillhole, NSBDD008, produced an intersection from surface of:
- 52m @ 1.15% Cu, 0.62% V2O5, 3.49% Pb, 4.57 g/t Ag from surface,
including: 25.74m @ 1.71% Cu, 1.17% V2O5, 6.57% Pb, 4.92 g/t Ag from 2.26m
including: 11.74m @ 2.67% Cu, 1.42% V2O5, 9.21% Pb, 7.12 g/t Ag from 2.26m
The diamond drilling has confirmed the previously announced reverse circulation (RC) high-grade drilling intersections of copper, vanadium and lead with silver from the shallow oxide zone, that included:
- NSBRC007: 24m @ 1.33% Cu, 4.77% Pb, 1.37% V2O5, 3.67g/t Ag from 3m
including 6m @ 3.67% Cu, 14.9% Pb, 4.40% V2O5, 12.16g/t Ag from 6m, and,
- NSBRC010: 29m @ 1.54% Cu, 4.49% Pb, 1.19% V2O5, 6.97g/t Ag from 2m
including 9m @ 3.66% Cu, 11.91% Pb, 3.62% V2O5, 7.70g/t Ag from 3m
The mineralisation at Nosib has been defined on <20m x 20m spacing with both RC and diamond drilling. Interpretation and modelling will now be carried out in order to prepare a maiden Mineral Resource estimate for the shallow high-grade supergene copper-vanadium-lead-silver zone.
Stage 1 metallurgical testing will also be initiated on aggregated drill-core samples from Nosib, in two stages:
- Gravity testwork to generate high-grade vanadium-copper-lead concentrate, and,
- Hydrometallurgical leach testwork to determine vanadium and base metal extraction rates and generate high-value vanadium products with copper, lead, zinc and silver by-products.
A bulk trial mining sample (>3 tonnes) is being excavated from surface at Nosib for large scale, Stage 2, metallurgical testing to follow the Stage 1 testwork outcomes.
Results from this staged testwork program will be incorporated into an integrated mining and processing plan for both the Nosib and Abenab high-grade vanadium +/- copper-lead-zinc-silver projects.
Deeper diamond drilling intersected thick stratabound intersections of copper-silver mineralisation and targeting of the deeper copper-silver zone will continue.
Otavi Mountain Land tenements with the location of the Company’s key prospects
